FR Tuyau haute pression pour l'Off-Shore
High pressure
 |
T916
|
De 5/8" to 1"
De 2"1/2 to 3" |
|
The T916 hose is intended for hydraulic systems with high pressure peaks, under severe operating conditions, for mining, offshore, perforation, etc ...
The standard version inner tube is suitable for conveying hydraulic fluids based on mineral, glycol and vegetable oils.
Its MSHA approved coating is resistant to severe abrasion, oils, fuels and atmospheric agents.
The textile folds distribute the pressure forces applied to the inner tube.
The steel wires making up the cables are treated against corrosion.
We crimp various types of tips on this pipe: flanges according to various international standards, line-pipe tips, specific tips depending on request.
Technical specifications :
Inner tube : Synthetic rubber
Reinforcement : 6 very high tensile steel spiral
Outer cover : MSHA resistant synthetic rubber
Outer finish : wrapped
Temperature : -40°C to +100°C - peaks to 125°C
Colour : black
Marking : Tecalemit - part n°- MSHA - bar - batch n°
| Part N° | Mod. | Inner diameterr |
Reinforcement outer diameter |
Outer diameter |
Working pressure |
Test pressure |
Burst pressure |
Bend radius |
Weight | |
| mm | Inch | mm | mm | bar | bar | bar | mm | Kg/m | ||
| 9939716 | 10 | 16 | 5/8" | 23,8 | 26 | 350 | 700 | 1400 | 125 | 0,925 |
| 9939816 | 12 | 19 | 3/4" | 28,2 | 31 | 350 | 700 | 1400 | 140 | 1,320 |
| 9939916 | 16 | 25,4 | 1" | 35,1 | 38,4 | 350 | 700 | 1400 | 150 | 1,950 |
| 9938904 | 20 | 31,8 | 1"1/4 | 47,2 | 50,3 | 525 | 1050 | 2100 | 420 | 3,810 |
| 9938905 | 24 | 38,1 | 1"1/2 | 57,8 | 58,2 | 475 | 950 | 1900 | 500 | 5,095 |
| 9938906 | 32 | 50,8 | 2" | 67,7 | 71,4 | 420 | 840 | 1680 | 525 | 6,330 |
| 9938907 | 40 | 63,5 | 2"1/2 | 82,2 | 85,7 | 350 | 700 | 1400 | 800 | 8,230 |
| 9938908 | 48 | 76,2 | 3” | 95,7 | 99,2 | 210 | 420 | 840 | 900 | 9,110 |
Possible end-fittings : Flange, threaded male NPT
Water
 |
134
|
|
 |
ISO 1307 |
|
Technical specifications :
Inner tube : Black NBR rubber.
Reinforcement : High tensile synthetic textile.
Outer cover : Oil, sea water, weather and ozone resistant CR rubber.
Application : for water discharge.
Temperature : -35°C / +80°C
Colour : Black blue wrapped
MARKING : TECALEMIT FLEXIBLES - REF 134 - WATER DISCHARGE - WP - BAR - BATCH N°
| Part n° | Inner diameter | Outer diameter |
working pressure |
Burst pressure |
Bend radius |
Weight | Production lengths |
|
| Pouce | mm | mm | bar | bar | mm | (g/m) | m | |
| 134 75 | 3 | 76 | 93 | 10 | 40 | 760 | 3057 | Max 61 |
| 134 100 | 4 | 102 | 118 | 10 | 40 | 1020 | 3995 | Max 61 |
| 134 125 | 5 | 127 | 144 | 7 | 28 | 1270 | 5048 | Max 61 |
| 134 150 | 6 | 152 | 169 | 7 | 28 | 1520 | 5696 | Max 61 |
 |
824
|
|
 |
ISO 1307 + FDA |
|
Technical specifications :
Inner tube : Red non-toxic, food qualily, taste and odour free.
Reinforcement : High tensile synthetic textile.
Outer cover : Sea water, weather and ozone resistant orange, EPDM rubber.
Application : For discharge of potable water.
Temperature : -30°C / +70°C
Colour : Orange white stripe
MARKING : TECALEMIT FLEXIBLES - REF 824 - POTABLE WATER DISCHARGE - WP - BAR - BATCH N°
| Part n° | Inner diameter | Outer diameter |
working pressure |
Burst pressure |
Bend radius |
Weight | Production lengths |
|
| Pouce | mm | mm | bar | bar | mm | (g/m) | m | |
| 824 75 | 3 | 76 | 93 | 10 | 40 | 760 | 3239 | Max 61 |
| 824 100 | 4 | 102 | 118,5 | 10 | 40 | 1020 | 4019 | Max 61 |
| 824 125 | 5 | 127 | 146 | 8 | 32 | 1270 | 5250 | Max 61 |
| 824 152 | 6 | 152 | 169 | 8 | 32 | 1520 | 5830 | Max 61 |
|
844
|
|
 |
ISO 1307 + FDA |
|
Technical specifications :
Inner tube : Red non-toxic, food qualily, taste and odour free.
Reinforcement : High tensile synthetic textile and steel wire helix.
Outer cover : Sea water, weather and ozone resistant orange, EPDM rubber.
Application : For suction and discharge of potable water.
Temperature : -30°C / +70°C
Colour : Orange white stripe
MARKING : TECALEMIT FLEXIBLES - REF 844 - POTABLE WATER S/D - WP - BAR - BATCH N°
| Part n° | Inner diameter | Outer diameter |
working pressure |
Burst pressure |
Negative pressure |
Bend radius |
Weight | Production lengths |
|
| Pouce | mm | mm | bar | bar | bar | mm | (g/m) | m | |
| 844 75 | 3 | 76 | 97 | 16 | 64 | -0,80 | 608 | 4368 | Max 61 |
| 844 100 | 4 | 102 | 119 | 16 | 64 | -0,80 | 816 | 4566 | Max 61 |
Hydrocarbons
 |
424
|
|
 |
ISO 1307 |
|
Technical specifications :
Inner tube : Black, fuel and oil resistant NBR rubber.
Reinforcement : High tensile synthetic textile and antistatic copper wire.
Outer cover : Oil, fuel, weather, sea water and ozone resistant black CR rubber.
Application : For discharge of heavy duty petroleum products up to 50% aromatic content.
Temperature : -35°C / +80°C
Couleur : Black brown wrapped
MARKING : TECALEMIT FLEXIBLES - REF 424 - OIL DISCHARGE - WP - BAR - BATCH
| Part n° | Inner diameter | Outer diameter |
Working pressure |
Burst pressure |
Bend radius |
Weight | Production lengths |
|
| Pouce | mm | mm | bar | bar | mm | (g/m) | m | |
| 424 75 | 3 | 76 | 93 | 10 | 40 | 760 | 3057 | Max 61 |
| 424 100 | 4 | 102 | 118 | 10 | 40 | 1020 | 3995 | Max 61 |
| 424 125 | 5 | 127 | 144 | 7 | 28 | 1270 | 5048 | Max 61 |
| 424 150 | 6 | 152 | 169 | 7 | 28 | 1520 | 5696 | Max 61 |
|
454
|
|
 |
ISO 1307 |
|
Technical specifications :
Inner tube :Black, fuel and oil resistant NBR rubber.
Reinforcement : High tensile synthetic textile with 2 steel wire helix and antistatic copper wire.
Outer cover : Oil, fuel, weather, sea water and ozone resistant black CR rubber.
Application : For suction and discharge of heavy duty petroleum products up to 50% aromatic content.
Temperature : -35°C / +80°C
Couleur : Black blue wrapped, orange , yellow, red
| Part n° | Inner diameter | Outer diameter |
Working pressure |
Burst pressure |
Negative pressure |
Bend radius |
Weight | Production lengths |
|
| Pouce | mm | mm | bar | bar | bar | mm | (g/m) | m | |
| 454 75 | 3 | 76 | 93,5 | 16 | 64 | -0,80 | 608 | 3625 | Max 61 |
| 454 102 | 4 | 102 | 118,5 | 16 | 64 | -0,80 | 816 | 4804 | Max 61 |
| 454 127 | 5 | 127 | 149 | 10 | 40 | -0,80 | 1000 | 7588 | Max 61 |
| 454 152 | 6 | 152 | 174 | 10 | 40 | -0,80 | 1216 | 9364 | Max 61 |
| 454 203 | 8 | 203 | 230 | 10 | 40 | -0,80 | 1624 | 15390 | Max 20 |
 |
470
|
|
 |
EN 1765 TYPE S10 |
|
Technical specifications :
Inner tube : abrasion and weather resistant NBR rubber
Reinforcement : high tensile synthetic textile, steel wire helix and antistatic copper wire.
Outer cover: abrasion,ozone,weather,heat and oil resistant special synthetic rubber.
Outer finish : wrapped
Temperature : -30° to + 82° c maximum
Production lengths 60 metres maximum until 6’’, 40 metres maximum of 8 " and 10 ", 12 metres maximum until 16 "
Temperature : -35°C / +82°C
Colour : black
MARKING : TECALEMIT FLEXIBLES - REF 470 - EN 1765 type S10 - OIL DISCHARGE - WP - BAR - BATCH N°
| Part n° | Inner diameter | Outer diameter |
Working pressure |
Burst pressure |
Negative pressure |
Bend radius |
Production lengths |
|
| Pouce | mm | mm | bar | bar | bar | mm | (kg/m) | |
| 470 50 | 2'' | 50,8 | 72 | 10 | 40 | - 0,92 | 200 | 3,5 |
| 470 75 | 3'' | 76,2 | 100 | 10 | 40 | - 0,92 | 400 | 5,56 |
| 470 100 | 4'' | 101,6 | 129 | 10 | 40 | - 0,92 | 500 | 7,97 |
| 470 125 | 5'' | 127 | 162 | 10 | 40 | - 0,92 | 650 | 14,07 |
| 470 150 | 6'' | 152,4 | 190 | 10 | 40 | - 0,92 | 750 | 17,325 |
| 470 200 | 8'' | 203 | 243 | 10 | 40 | - 0,92 | 950 | 24,15 |
| 470 250 | 10'' | 254 | 302 | 10 | 40 | - 0,92 | 1200 | 38,63 |
| 470 300 | 12'' | 305,8 | 356 | 10 | 40 | - 0,92 | 1500 | 48,5 |
| 470 350 | 14'' | 355,6 | 408 | 10 | 40 | - 0,92 | 2150 | 60 |
| 470 400 | 16'' | 406 | 460 | 10 | 40 | - 0,92 | 2800 | 72,5 |
|
471
|
|
|
EN 1765 TYPE S15 |
|
Technical specifications :
Inner tube : abrasion and weather resistant NBR rubber
Reinforcement : high tensile synthetic textile, steel wire helix and antistatic copper wire.
Outer cover: abrasion,ozone,weather,heat and oil resistant special synthetic rubber.
Outer finish : wrapped
Temperature : -30° to + 82° c maximum
Production lengths 60 metres maximum until 6’’, 40 metres maximum of 8 " and 10 ", 12 metres maximum until 16 "
Temperature : -35°C / +82°C
Colour : black
MARKING : TECALEMIT FLEXIBLES - REF 471 - EN 1765 type S15 - OIL DISCHARGE - WP - BAR - BATCH N°
| Part n° | Inner diameter | Outer diameter |
Working pressure |
Burst pressure |
Negative pressure |
Bend radius |
Production lengths |
|
| Pouce | mm | mm | bar | bar | bar | mm | (kg/m) | |
| 471 50 | 2'' | 50,8 | 74 | 15 | 60 | - 0,92 | 200 | 3,9 |
| 471 75 | 3'' | 76,2 | 104 | 15 | 60 | - 0,92 | 400 | 6,15 |
| 471 100 | 4'' | 101,6 | 134 | 15 | 60 | - 0,92 | 500 | 9,35 |
| 471 125 | 5'' | 127 | 162 | 15 | 60 | - 0,92 | 650 | 13,75 |
| 471 150 | 6'' | 152,4 | 190 | 15 | 60 | - 0,92 | 750 | 17,45 |
| 471 200 | 8'' | 203 | 245 | 15 | 60 | - 0,92 | 950 | 25,00 |
| 471 250 | 10'' | 254 | 303 | 15 | 60 | - 0,92 | 1200 | 38,250 |
| 471 300 | 12'' | 305,8 | 362 | 15 | 60 | - 0,92 | 1500 | 50,75 |
| 471 350 | 14'' | 355,6 | 416 | 15 | 60 | - 0,92 | 2150 | 65,225 |
| 471 400 | 16'' | 406 | 479 | 15 | 60 | - 0,92 | 2800 | 82,25 |
 |
494
|
|
 |
ISO 15540 |
|
The hose 494 is intended for the transfer of hydrocarbons in the off-shore environment when fire resistance is required.
Anti-corrosion steel reinforcement.
Neoprene outer cover ensures excellent resistance to ozone, oils and abrasion.
Flame resistant according to MSHA standard and fire resistant according to ISO15541 (30 minutes - 800°C).
In 2016, it was the subject, in diameter 50 and 150, type approval from the Bureau Veritas Marine and Off-shore division for the transfer to 13 bars of water, sea water, hydrocabures, oil and hydraulic oil.
Technical specifications :
Inner tube : smooth black NBR rubber
Reinforcement : 2 or 4 metal wire spirals
Outer cover : CR flame-extinguishing
Outer finish : fine tape-wrapped
Temperature : -40°C à +70°C
Production lengths : 60m
Colour : black
Marking Tecalemit by SEL - Part N°- Résistant au feu - ISO 15541 - MSHA - batch N°
| Part n° | Inner diameter |
Outer diameter |
Wall thickness |
Working pressure |
Burst pressure |
Bend radius |
Weight | |
| mm | Inch | mm | mm | bar | bar | mm | kg/m | |
| 494 50 | 50,8 | 2" | 69 | 6 | 30 | 160 | 225 | 2,5 |
| 494 75 | 76,2 | 3" | 94 | 9 | 30 | 160 | 380 | 4,5 |
| 494 100 | 101,6 | 4" | 122 | 10 | 30 | 160 | 510 | 6,7 |
| 494 125 | 127 | 5" | 149 | 11 | 30 | 160 | 720 | 8,0 |
| 494 150 | 152,4 | 6" | 176 | 12 | 30 | 160 | 800 | 10,75 |
 |

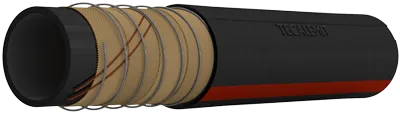

495
|
|
 |
EN 1761 : 1999 SD |
|
Intended for suction and discharge of hydrocarbons, hose REF 495 has 4 textile plies and a metal spiral.
It is a very robust suction hose.
It can be used over a wide range of temperatures and its neoprene outer cover ensures excellent resistance to ozone.
It is intended for the delivery of oil by truck - tank.
It meets NF EN 1761 type SD (suction and delivery) standard.
this hose can be swaged with guillemin end-fittings and supplied with ADR test certificate.
Caractéristiques techniques :
Technical specifications :
Inner tube : black nitrile NBR rubber
Reinforcement : 4 textile plies and one metal spiral
Outer cover : abrasion and weather resistant neoprene rubber
Electrical conductivity : 2 copper braid (< 106Ω/m)
Outer finish : wrapped
Temperature : -40°C / +120°C
Colour : black
MARKING : TECALEMIT FLEXIBLES - PART N° - Ø - EN 1761 : 1999 SD (Ø) - PMS16 - OHM
| Part n° | Inner diameter | Outer diameter |
Wall thickness |
Working pressure |
Burst pressure |
Bend radius |
Weight | Production lengths |
|
| mm | Pouce | mm | mm | bar | bar | mm | kg/m | m | |
| 495 70 | 70 | 2” 3/4 | 84 | 7 | 16 | 48 | 500 | 2,8 | 40 |
| 495 90 | 90 | 3” 1/2 | 106 | 8 | 16 | 48 | 650 | 4,2 | 40 |
| 495 100 | 101,6 | 4” | 118 | 8 | 16 | 48 | 690 | 5,8 | 40 |
| 495 120 | 120 | 4”3/4 | 138 | 11 | 16 | 48 | 700 | 7,0 | 40 |
| 495 150 | 152,4 | 6” | 175 | 11,5 | 16 | 48 | 1050 | 9,0 | 40 |
 |
499
|
 |
|
Hose 499 is intended for the delivery of hydrocarbons with an aromatic content up to 50%.
Technical specifications :
Inner tube : black NBR nitrile rubber
Reinforcement : 4 textile plies and 1 copper braid.
Outer cover : abrasion, sea water, oils and weather resistant neoprene rubbe
Outer finish : wrapped
Temperature : -37°C to +80°C
Production lengths : 61m max
Colour : black
Marking : Tecalemit Flexibles - 499 - Oil Fuel - Wp - Bar - batch N°
| Part n° | Inner diameter |
Outer diameter |
Working pressure |
Burst pressure |
Bend radius |
Weight | |
| mm | Inch | mm | bar | bar | mm | kg/m | |
| 499 50 | 50,8 | 2" | 69 | 13 | 70 | 500 | 2,28 |
| 499 100 | 101,6 | 4" | 129 | 13 | 70 | 550 | 6,49 |
| 499 150 | 152,4 | 6" | 184 | 13 | 70 | 1500 | 12,00 |
Chemical
 |
624
|
|
 |
ISO 1307 |
|
Technical specifications :
Inner tube : Chemicals, solvents, petroleum products & oil resistant translucent XLPE.
Reinforcement : High tensile synthetic textile, 2 steel wire helix and 2 antistatic copper wires.
Outer cover : Sea water, weather, ozone, abrasion and flame resistant EPDM rubber.
Application : For suction and discharge wide range of chemicals, petroleum products, oils, high aromatic solvents, alcohol, etc...
Temperature : -30°C / +70°C
Colour : Green yellow stripe
MARKING : TECALEMIT FLEXIBLES - REF 624 - CHEMICAL S/D - WP - BAR - BATCH N°
| Part n° | Inner diameter | Outer diameter |
working pressure |
Burst pressure |
Negative pressure |
Bend radius |
Weight | Production lengths |
|
| Pouce | mm | mm | bar | bar | bar | mm | (g/m) | m | |
| 624 75 | 3 | 76 | 91 | 10 | 40 | -0,80 | 530 | 3150 | Max 61 |
| 624 100 | 4 | 102 | 120 | 10 | 40 | -0,80 | 700 | 4680 | Max 61 |
 |
654
|
|
 |
ISO 1307 |
|
Technical specifications :
Inner tube : Translucent, food grade UHMW-PE liner suitable for wide range of corrosive chemicals and solvents.
Reinforcement : High tensile synthetic textile, steel wire helix and antistatic copper wire.
Outer cover : Sea water, weather, ozone, abrasion resistant EPDM rubber.
Application : For suction and discharge of all corrosive chemicals, especially high aromatic solvents.
Temperature : -30°C / +70°C
Colour : Blue white stripe
MARKING : TECALEMIT FLEXIBLES - REF 654 - UHMWPE CHEMICAL S/D - WP - BAR - BATCH N°
| Part n° | Inner diameter | Outer diameter |
working pressure |
Burst pressure |
Negative pressure |
Bend radius |
Weight | Production lengths |
|
| Pouce | mm | mm | bar | bar | bar | mm | (g/m) | m | |
| 654 75 | 3 | 76 | 92 | 16 | 64 | -0,80 | 530 | 3200 | Max 61 |
| 654 100 | 4 | 102 | 121 | 16 | 64 | -0,80 | 700 | 4750 | Max 61 |
Abrasive
 |
724
|
|
 |
ISO 1307 |
|
Technical specifications :
Inner tube : High abrasion resistant antistatic NR.
Reinforcement : High tensile synthetic textile and antistatic copper wire.
Outer cover : Sea water, weather and ozone resistant black, EPDM rubber.
Application : For discharge barite, bentonite and other abrasive materials.
Temperature : -40°C / +70°C
Colour : Black yellow wrapped, green
MARKING : TECALEMIT FLEXIBLES - REF 724 - BULK MATERIAL DISCHARGE - WP - BAR - BATCH N°
| Part n° | Inner diameter | Outer diameter |
Working pressure |
Burst pressure |
Bend radius |
Weight | Production lengths |
|
| Pouce | mm | mm | bar | bar | mm | (g/m) | m | |
| 724 75 | 3 | 76 | 97 | 14 | 56 | 760 | 3240 | Max 61 |
| 724 100 | 4 | 102 | 123 | 10 | 40 | 1020 | 4500 | Max 61 |
| 724 125 | 5 | 127 | 149 | 10 | 40 | 1270 | 5817 | Max 61 |
| 724 150 | 6 | 152 | 174 | 10 | 40 | 1520 | 6634 | Max 61 |
|
734
|
|
 |
ISO 1307 |
|
Technical specifications :
Inner tube : High abrasion resistant antistatic NR.
Reinforcement : High tensile synthetic textile, 2 steel wire helix and antistatic copper wire.
Outer cover : Sea water, weather and ozone resistant black, EPDM rubber.
Application : For suction and discharge barite, bentonite and other abrasive materials.
Temperature : -40°C / +70°C
Colour : Black yellow wrapped, orange, red
MARKING : TECALEMIT FLEXIBLES - REF 734 - BULK MATERIAL S/D - WP - BAR - BATCH N°
| Part n° | Inner diameter | Outer diameter |
Working pressure |
Burst pressure |
Negative pressure |
Bend radius |
Weight | Production lengths |
|
| Pouce | mm | mm | bar | bar | bar | mm | (g/m) | m | |
| 734 102 | 4 | 102 | 123 | 10 | 40 | -0,80 | 1020 | 5370 | Max 61 |
| 734 125 | 5 | 127 | 149 | 10 | 40 | -0,80 | 1270 | 6969 | Max 61 |
| 734 150 | 6 | 152 | 174 | 10 | 40 | -0,80 | 1520 | 8707 | Max 61 |
 |
744
|
 |
|
This hose allows the assembly of flexible conducts for pneumatic handling of abrasive products, using 1/2 ISO PN cast aluminum flange shells that attach to the outside of the hose.
Assembly does not require particular formation nor specific tools.
No particular protection is necessary for its outdoor use and a simple regular visual control is sufficient.
The couplings are reusable, the replacement of the used lengths is quickly made.
Technical specifications :
Inner tube : abrasion resistant antistatic natural rubber.
Reinforcement : high tensile synthetic textile, steel wire helix and antistatic copper wire
Outer cover : abrasion, ozone and wather resistant corruged special synthetic rubber.
Outer finish : corrugated
Temperature : - 40°C to +70°C
Production lengths : variable depending on the diameter
Colour : black
Marking : Tecalemit - Part N°- Dia x thickness - batch N°
Abrasion loss value : acc DIN 53516 ≤ 60mm3
| Part n° | Inner diameter |
Outer diameter |
Negative pressure |
Working pressure |
Burst pressure |
Bend radius |
Weight | |
| mm | Inch | mm | mm | bar | bar | mm | kg/m | |
| 744 80x113 | 80 | 3"1/8 | 113 | -0,92 | 10 | 30 | 350 | 6,584 |
| 744 101x133 | 101,6 | 4” | 133 | -0,92 | 10 | 30 | 500 | 7,663 |
| 744 127x158 | 127 | 5” | 158 | -0,92 | 10 | 30 | 650 | 9,817 |
| 744 152x183 | 152,4 | 6” | 183 | -0,92 | 10 | 30 | 750 | 12,117 |
| 744 203x234 | 203,2 | 8” | 234 | -0,92 | 10 | 30 | 1750 | 16,586 |
| 744 254x286 | 254 | 10” | 286 | -0,92 | 10 | 30 | 2000 | 22,175 |
| 744 304x341 | 304,8 | 12” | 341 | -0,92 | 10 | 30 | 2500 | 26,518 |
 |
754
|
|
 |
ISO 1307 |
|
Technical specifications :
Inner tube : Black, special synthetic rubber.
Reinforcement : High tensile synthetic textile, 2 steel wire helix and antistatic copper wire.
Outer cover : Sea water, weather and ozone resistant black, CR rubber.
Application : For suction and discharge of high pressure liquid mud, mineral oils etc...
Temperature : -35°C / +80°C
Colour : Black yellow stripe
MARKING : TECALEMIT FLEXIBLES - REF 754 - LIQUID MUD S/D - WP - BAR - BATCH N°
| Part n° | Inner diameter | Outer diameter |
Working pressure |
Burst pressure |
Negative pressure |
Bend radius |
Weight | Production lengths |
|
| Pouce | mm | mm | bar | bar | bar | mm | (g/m) | m | |
| 754 100 | 4 | 102 | 127 | 40 | 165 | -0,80 | 1020 | 6905 | Max 61 |
| 754 125 | 5 | 127 | 153 | 40 | 165 | -0,80 | 1270 | 9700 | Max 61 |
